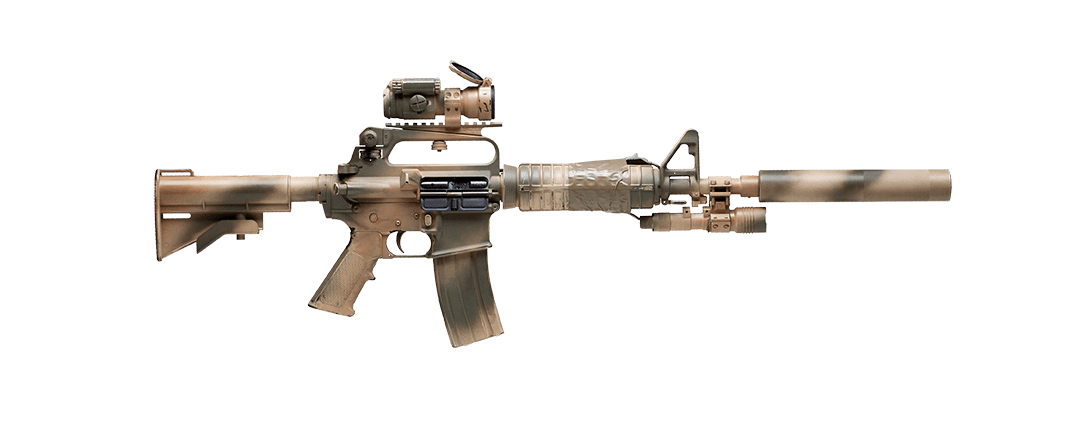

14 5 Delta Carbine 72 DPI
This rifle is chambered in 5.56 NATO.
This platform is built on a fluted 416R stainless steel barrel with a matte finish. All 5.56 NATO barrels are threaded with a 1/2X28 pitch.
All of our Bolt Carriers go through a R.E.M Polish process prior to nitride coating. The R.E.M Polish process reduces friction, improves part durability, improves oil retention, and improves contact & bending fatigue. Our Bolts are MPI (Magnetic Particle Inspected) and coated in a durable nitride finish.

Classic Delta Carbine

SHARE
  • Quick Specs
  • Description
  • Features
  • Reviews (0)
  • Downloads

Quick Specs

CALIBER: 5.56 NATO
CLASSIFICATION: Rifle
BARREL LENGTH: 14.5″
HANDGUARD: 7 Hole Clamshell Handguard
GAS SYSTEM: Non-Adjustable
GAS LENGTH: Rifle
TRIGGER: 2-Stage
MUZZLE: Allen AEMB Mount
BCG: QPQ W/R.E.M Polish
OVERALL LENGTH:
FIRE SELECTOR: Ambi-Short Throw Adjustable
WEIGHT: Light as a Feather



Description

During the early 1990’s, times were changing. Special Operators were starting to become comfortable using optics and accessories on their rifles but the technology wasn’t often times there to support the rapidly evolving needs of special forces units during that timeframe. Operators starting equipping their rifles with Aimpoint 5000’s on specialized A.R.M.S. Weaver style rails. These operators paved the way for innovation which ultimately led us to using a wide variety of accessories on firearms. These men were pioneers and in an effort to pay homage to them, we have decided to release our own modern interpretation called the Delta Carbine.

This TYPE-A Delta Carbine is built on an accurate fixed carry handle upper with options for an A2 style or C7 depending on user preference. Built with proven mil-spec components to make it an incredibly versatile rifle. The Delta Carbine is equipped with a 14.5″ 416R Stainless steel match grade barrel with an Allen Engineering AEMB muzzle pinned/welded coupled with an SPR collar to fit an Allen AEM5 suppressor.  It’s also equipped with a 7 hole classic clamshell handguard as well as an A2 grip and CAR15 style stock.  The TYPE-A Delta Carbine is driven by our TYPE-A QPQ bolt carrier group w/R.E.M Polish. Equipped with a DGI (direct gas impingement) system and our new TYPE-A PMC Straight 2-stage trigger to give it consistent reliability time after time.

All rifles will come standard with a Weaver Style mount and Aimpoint PRO as standard. All firearms will be Spray Painted at the factory to ensure consistency as well.

NOTE:  All of our rifles are Hardcoat Anodized and then Cerakoted to give you a longer lasting more durable finish.  We wanted your rifle to wear to the anodized surface vs. the raw aluminum surface like some of our competitors.  Just another added benefit making our rifles…TYPE-A.

****Please Note: All NFA rules apply. Please check with your local state laws.



Features

*(OPTICS NOT INCLUDED)

BARREL

  • Caliber: 5.56 NATO
  • Length: TYPE-A 14.5″ 1/7 twist Stainless Steel w/SPR Profile
  • Gas block: 416R Low Profile .750
  • Material: 416R Stainless Steel
  • Gas System: Carbine Length
  • Twist Rate: 1:7 twist
  • Finish: Bead Blasted Matte Finish
  • Thread: 1/2×28
  • Muzzle Device: Pinned & Welded Allen Engineering AEMB Mount  – 1/2×28 w/SPR collar

UPPER RECEIVER

  • Platform: A2 Fixed Carry Handle or C7 Upper Receiver Based On Customers Preference
  • Finish: Option
    • Black – MIL-A-8625, Type-III, Class 2
    • Color – Type-III Anodizing with Cerakote Ceramic Coatings
  • Charging Handle: TYPE-A Ambi Charging Handle

  • Bolt Carrier Group: TYPE-A QPQ W/REM POLISH BOLT CARRIER GROUP

  • CARRIER:
    • Semi-Auto Bolt Carrier
    • Gas Key (Staked)
    • Gas Key Hardened to USGI Specifications
    • Grade 8 Hardened Fasteners
  • BOLT ASSEMBLY:
    • Case Hardened, Shot Peened & MPI Tested
    • Extractor (Fully Assembled)

LOWER RECEIVER

  • Platform: GEN3 Precision Machined 7075-t6 Aluminum Lower Receiver
  • Finish: Option
    • Black – MIL-A-8625, Type-III, Class 2
    • Color – Type III Anodizing with Cerakote Ceramic Coatings
  • Trigger: TYPE-A CCS 2-Stage Straight Trigger (3.5lb.)
  • Extension: 6-Position Adjustable Buffer Tube – Carbine Length
  • End Plate: Mil-Spec End Plate
  • Fire Selector: TYPE-A Ambi Billet 90°/45° Adjustable Short Throw Selector
  • Magazine Release: TYPE-A Extended Billet Mag Release
  • Lower Parts: Stainless Steel/Aluminum Detents & Springs

HANDGUARD/RAIL

  • Platform: Option
    • 7 Hole Clamshell Handguard
  • Finish: Option
    • Black – MIL-A-8625, Type-III, Class 2
    • Color – Type-III Anodizing with Cerakote Ceramic Coatings

FURNITURE

  • Stock: CAR-15 Retro Stock
  • Grip: A2 Style Pistol Grip

ACCESSORIES (INCLUDED W/RIFLE)

  • Magazine: DURMAG 30 Round Steel Magazine
  • Soft Case: 42″ Single Rifle Case

Colors Available (*Shown in Hardcoat Anodized Black)

  • Magpul™ Olive Drab Green (H-232Q)
  • Magpul™ Flat Dark Earth (H-267Q)
  • Noveske™ Bazooka Green (H-189Q)
  • Tungsten (H-237Q)
  • SIG™ Dark Grey (H-210Q)

Reviews

There are no reviews yet.

Be the first to review “Classic Delta Carbine”

You must be logged in to post a review.

Downloads

TS322318R3 BGD1014

Adjusting Your Gas

"If you’re running a rifle with an adjustable gas block, consider the following process for finding your sweet spot. First, close the gas port almost all the way. This means bottoming out the gas port screw and then backing off ¼ turn. Then insert a 1-round mag and fire. If the round doesn’t eject, open the gas port screw another ¼ turn and repeat. Continue this procedure until the casing ejects and the bolt locks back on the empty mag. Once you get good ejection and bolt lock open, open the gas port screw one more ¼ turn. This is your minimum setting for reliable function. Beyond this, you’ll want to group tune the rifle. Your barrel will group differently based on gas setting. If you’re selected ammo is performing good at your minimum setting, then great. If not, then try firing 3 round groups in ¼ turn increments up to 1 whole turn. You should find some improvement in this range."

    -Jason Gady
